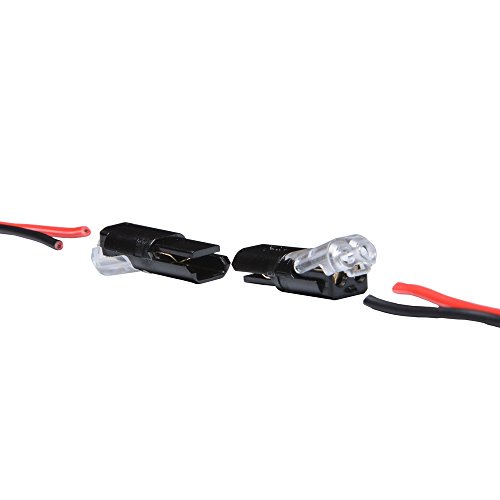

This wire connector terminal is an innovative solution to quickly splice wire of low voltage devices keeping ability to disconnect after connection done. Except for silicon wire, it is workable to both multiple stranded and single solid wire as long as the wire gauge is in 22~20 AWG. No more electrical tape nor wire stripper needed, all you need to finish the work is a pliers. Working with this cable splicer, you can really focus on arranging position of electrical equipment,just place your electrical devices wherever you want then make connection between devices. Typical Application Lighting Equipment : 12V / 24V LED strip light, linear light, downlight, ceiling light, spotlight, track light, eye-ball light and christmas light,etc Electronic Equipment: CCTV camera, dash cam recorder, PC fan, speaker,etc Electrial Devices: Power supply, Dimmer, Battery Box and Driver, etc Other Devices that work under low voltage ( How to use Insert Wire into wire hole on cap Clamp cap down by pliers Ensure the cap hook the base Repeat 1-3 to make another connector wire Flip one of connector Connect to each other Note: During step 1-3, the pin (also as blade) will pierce the insulation of wire and contact the wire core inside. Specification Working Voltage: Max Current of PIN:9A. (actual current depend on the wire connected to it) Material: PC & Copper Workable Diameter of Wire: 2.0 mm / 0.08 Inch Workable Wire Gauge / Cross Section: 22~20 Gauge / 0.34~0.54 mm² Workable Wire Type: Multi-Stranded / Single Solid Product Dimension: 21.7*9.5*6mm (L*W*H)
