Optical Fiber Fusing Splicer, FS-60A Fiber Optic Welding Splicing Machine with High Accuracy Digital LCD Screen Optical Fiber Fusion Splicer 100V-240V 50/60Hz(UK)
Description
- @ The high-precision fusion splicer, with high-speed image processing technology and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 9 seconds.
- @ This machine is mainly used for the connection of optical fibers, which can be further connected with ordinary optical fiber cables, jumpers and multiple single-mode, multi-mode and dispersion-shifted quartz optical fibers with a cladding diameter of 50um-150um.
- @ Characterized by light weight, easy to carry and convenient to operate, fast splicing speed and low loses, it is especially suitable for optical fiber and cable projects, maintenance scientific research and teaching in telecommunications, radio and television, railway, petrochemical, electric power, military and public security and other communications fields.

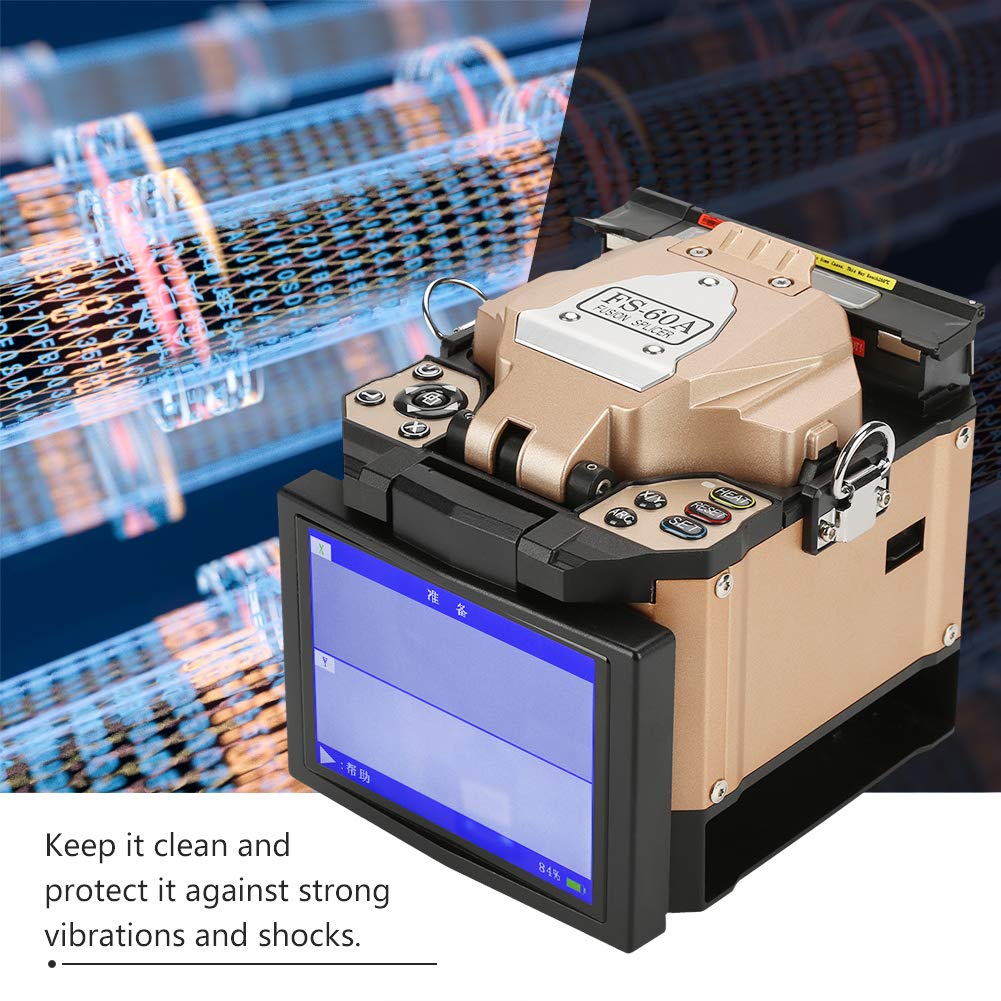

- @ Keep it clean and protect it against strong vibrations and shocks.
- @ Lighting is convenient for optical fiber installation in the evening.

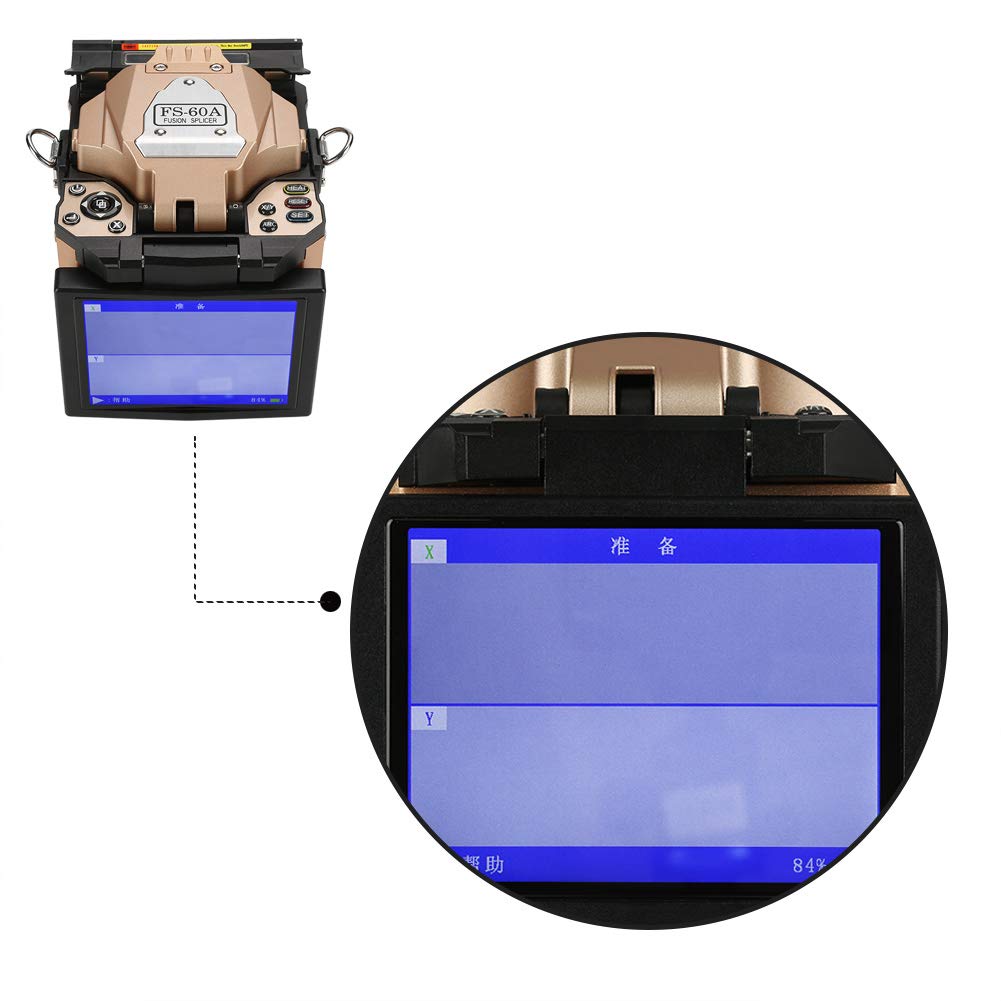

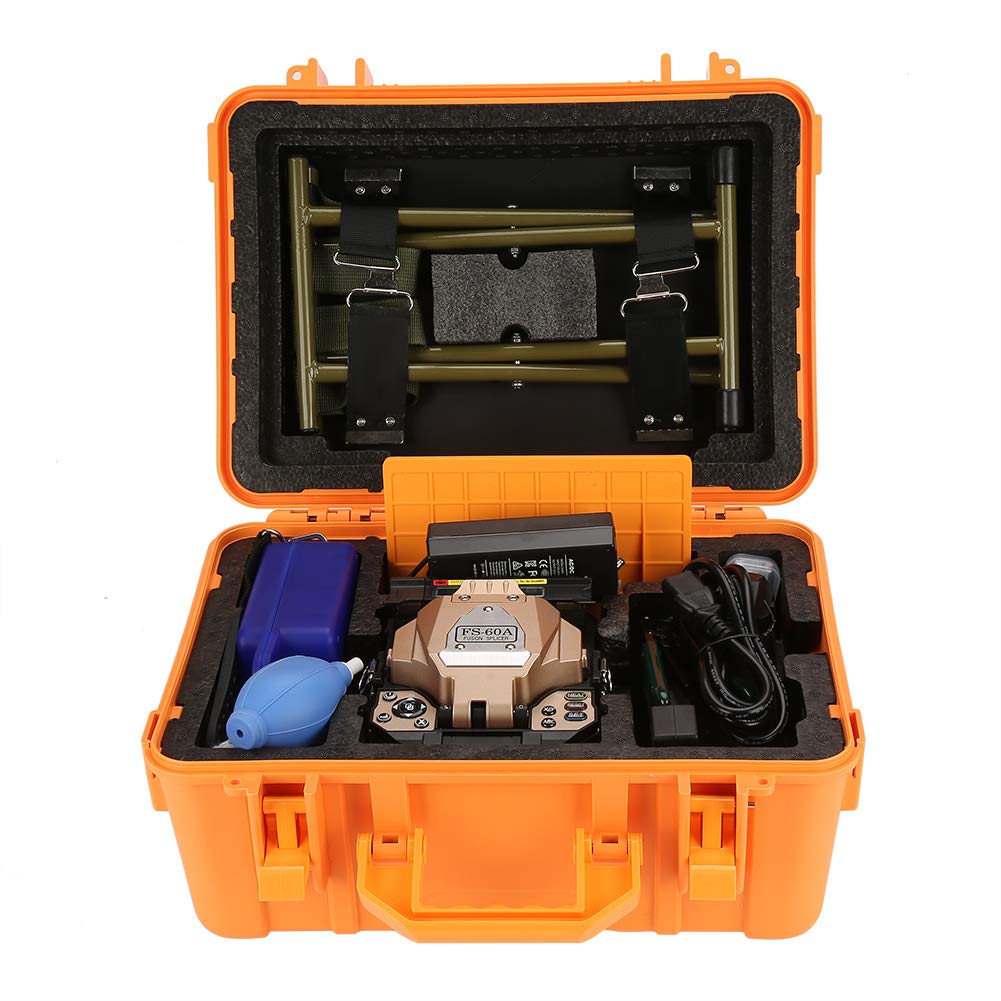

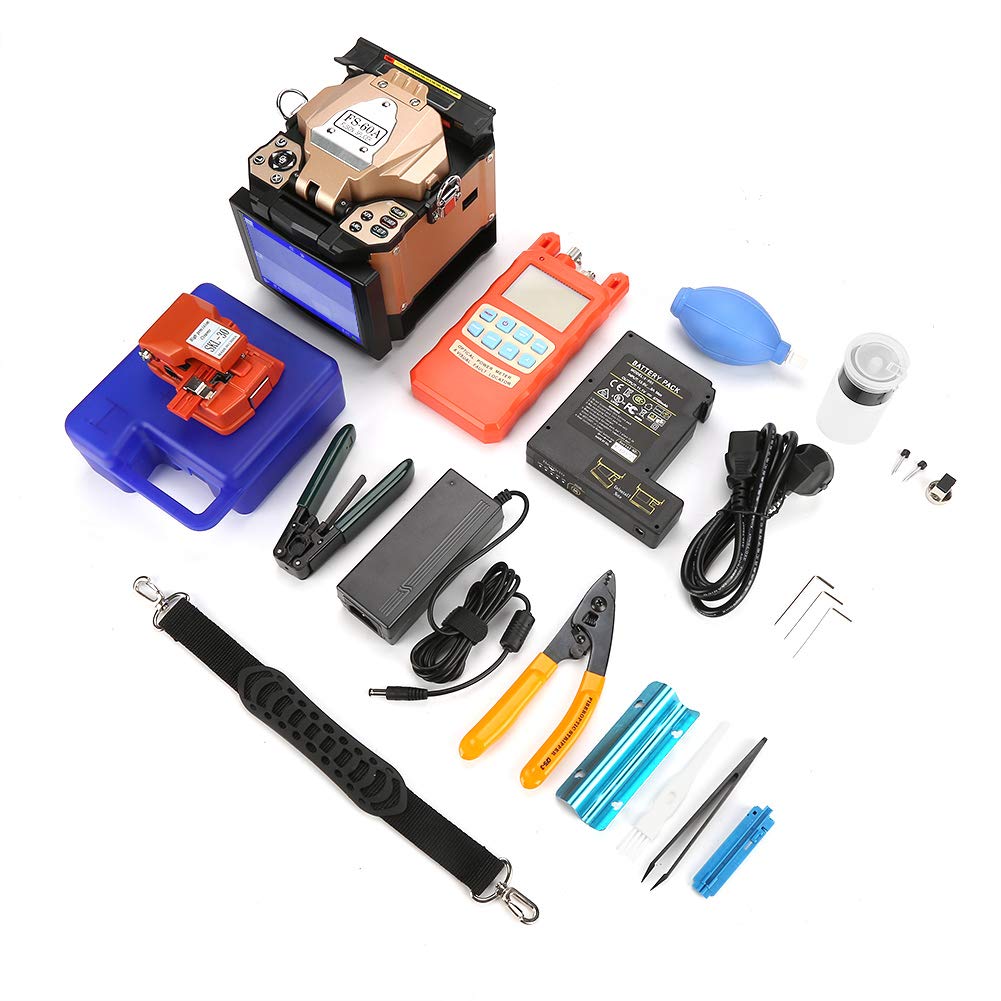

Specifications: Model: FS-60A  Voltage: 100V-240V  50/60Hz Applicable Optical Fiber: SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber types Splicing Loss: 0.02dB(SM), 0.01dB(MM) 0.04dB(DS/NZDS) Return Loss: Over 60dB Typical Splicing Duration: 9 seconds Typical Heating Duration: 26 seconds (configurable heating time and adjustable heating temperature) Optical Fiber Diameter: Cladding Diameter 80~150um, coating layer diameter 100~1000um Cutting Length: Coating layer below 250um: 8~16mm; coating layer 250~1000um: 16mm Amplification Factor: 400 times (X axls or Y axls) Heat Shrink Bush: 60mm, 40mm and a series of miniature bush Display: 5.0 inches TFT color LCD display. Reversible, convenient for bi-directional operation Splicing Mode: 17 groups of operation modes Heating Mode: 9 groups of operation modes Working Environment: Temperature:-10~+50℃, Humidity: <95%RH (no condensation); Working Altitude: 0~5000m, Max. Wind Speed: 15m/s Size: 158*130*156mm/6.2*5.1*6.1in Weight: Approx. 7.45kg/262.8oz Package Includes: 1 x Fusion Splicer 1 x Fiber Cleaver 1 x Fiber Stripper 1 x 30MW Fiber Tester 1 x Power Adapter 2 x Electrodes Stick 1 x Cold Cutting Frame 1 x Rubber-insulated Wire Stripping Pliers 1 x Transit Case 1 x Carrying Strap 1 x Seat 1 x battery pack 1 x Length Fixing Stripping Device 3 x Hex Wrench 1 x Brush 1 x Tweezers 1 x Dust Blower Ball 1 x Bottle 1 x SC square port adapter 1 x power cable
