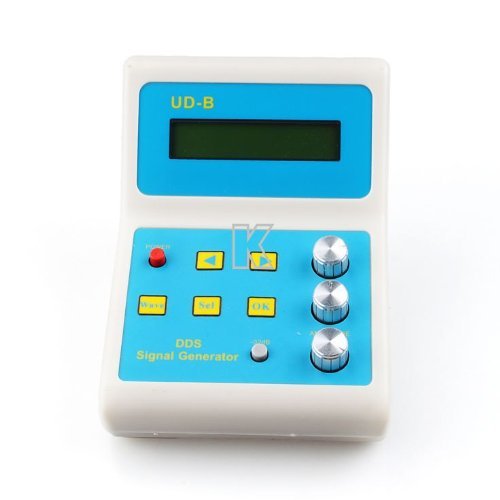

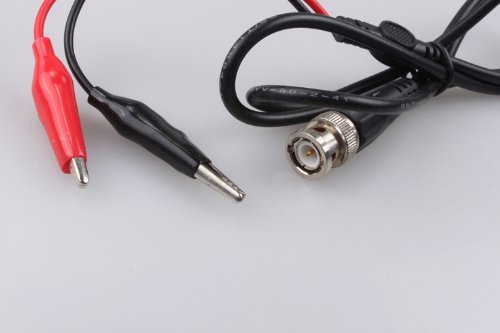

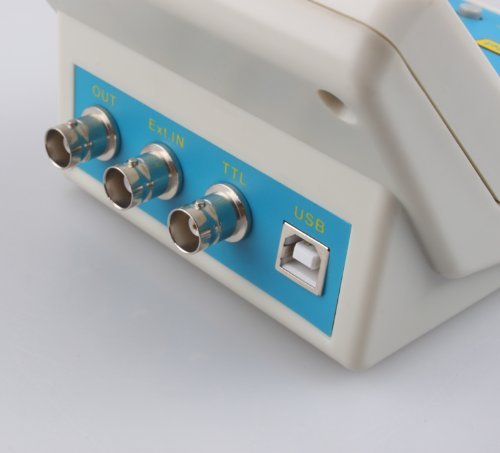

Main technology data 1. Signal Output function Output waveforms: Sine wave, Square wave and Triangle wave Output amplitude: ≥10Vp-p(signal output, no load) Output impedance: 50Ω±10%(signal output) DC offset: ±2.5V(no load) Display: LCD160 Frequency range: 0.01Hz ~ 2MHz(UDB1102) UDB1102 0.01Hz ~ 3MHz(UDB1103) 0.01Hz ~ 5MHz(UDB1105) 0.01Hz ~ 8MHz(UDB1108) Resolution: 0.01Hz Frequency Stability: ±1×10-6 Frequency accuracy: ±5×10-6 Sine wave distortion: ≤0.8% (reference frequency is 1kHz) Trinagle linearity: ≥98% (0.01Hz~10kHz) Rise and fall time of square wave: ≤100ns Square Wave Duty range: 1%~99% 2.TTL Output function Frequency range: 0.01Hz ~ 2MHz (UDB1102) UDB1102 0.01Hz ~ 3MHz (UDB1103) 0.01Hz ~ 5MHz (UDB1105) 0.01Hz ~ 8MHz(UDB1108) Amplitude: >3Vp-p Fan Out: >20 TTL loads 3.COUNTER function Counter Range: 0-4294967295 Frequency Meter Range: 1Hz~60MHz Input Voltage Range: 0.5Vp-p~20Vp-p Storage and transferred: 10 set of parameters with storage and recall functions. Package List: 1 * UDB1102 With Shell 2MHz DDS signal generator 1 * power adapter 1 * Signal Output Cable
